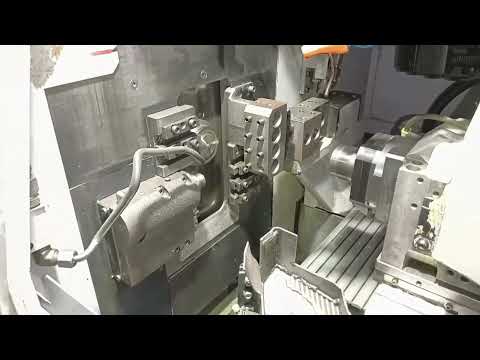

Used TSUGAMI B0 205 E Swiss type lathe

CNC: Fanuc 0i TD

Turning capability
Maximum bar diameter: from 3 mm up to 20 mm
Moving head stroke with guide bushing: max 210 mm
Moving head travel in chucker mode (without bushing): 45 mm
Spindles
Main spindle: 200 to 10,000 rpm
Main spindle power: 2.2 / 3.7 kW (3 / 5 HP)
Tools
Total tool positions: 21 (9 external + 12 rear fixed; option for 2 rear rotary tools)
Standard motorized tools: 4 (can be positioned front/back)
Motorized tool speeds: up to 8,000 rpm
Kinematics and control
Controlled axes: 5 axes (X1, Z1, Y1, X2, Z2 + spindle C-axes)
Rapid feed rate: 32 m/min (X1 and Y1 axes: 24 m/min)
Dimensions and weight
Length: 1655 mm
Width: 1125 mm
Height: 1700 mm
Weight: about 2,000 kg

Year: 2010
