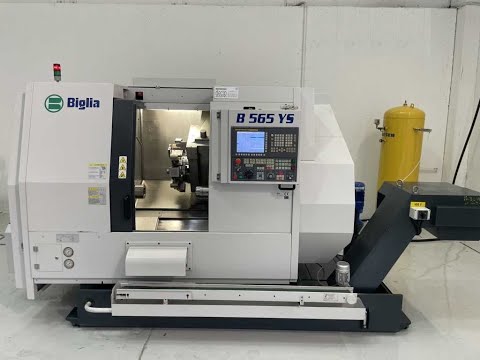

Used Biglia B565YS cnc lathe with live tooling

CNC: Fanuc 32i B

Main spindle:
Max. bar diameter: 70 mm
Max. turning diameter: 290 mm
Max. turning length: 560 mm
Spindle nose: A2-6
Spindle power: 11 kW
Spindle speed: 40-4000 rpm
C axis: 360° incr. 0.001° indexing
Turret:
Number of positions: 12
Number of motorized positions: 12
Axis travels:
X-axis travel: 170 mm
Y-axis travel: 560 mm
Z-axis travel: +55/-50 mm
Counter Spindle:
Spindle nose: A2-5
Spindle power: 11 kW
Spindle speed: 5000 rpm
C-axis: 360° incr. 0.001° indexing

AccessoriesI:
Conveyor belt for finished parts;
High-pressure pump;
No. 02 self-centering collets;
No. 01 self-centering chuck;
No. 02 motorized;
No. 10 tool holders.

Year: 2017
